A CO2 sensor node with display

Principles

  • Use the Amphenol / Telaire T6703-5K CO2 sensor, measure every 30s, show the result on a small OLED display, and send the readout to the MySensors controller.

  • Use an Arduino Nano on 5V.

  • I read this for a commercial CO2 meter, see below (translated). Hence, it would be good to add green, yellow and red LEDs:

    The CO2 meter fulfills the demands that are included in the Construction prescriptions. This includes the fact that the CO2 meter works on the continous mains net and that the device will calibrate itself. Also, the meter has a range from 0 - 5000 ppm and is equipped with 3 color codes: green for less than 800 ppm, yellow for 800 - 1200 ppm and red for a CO2-level of 1200 and higher.

    This can be done using a single WS2812B chip and the library at: https://github.com/PinkNoize/ws2812B-arduino.

The result

Complete Prototype

The first prototype

Built in a box

The node built in a box

The inside of the box

The inside of the box (no watchdog nor LED yet - they were added later)

Used Components

Wiring

Component Pin Wire color / component Pin Component
ArduinoNano5V VCC red 5V Breadboard / Power Supply
ArduinoNano5V GND black GND Breadboard / Power Supply
T6703 1 SDA green A4 ArduinoNano5V
T6703 2 SCL blue A5 ArduinoNano5V
T6703 3 red VCC Breadboard / Power Supply
T6703 4 black GND Breadboard / Power Supply
T6703 5 PWM output (not used)
T6703 6 brown GND Breadboard / Power Supply
OLED-Display VCC red VCC ArduinoNano5V
OLED-Display GND black GND ArduinoNano5V
OLED-Display SCL A5 Purple ArduinoNano5V
OLED-Display SDA A4 Green ArduinoNano5V
NRF24L01+ Adapter VCC red 5V Breadboard / Power Supply
NRF24L01+ Adapter GND brown GND Breadboard / Power Supply
NRF24L01+ Adapter CE blue 9 ArduinoNano5V
NRF24L01+ Adapter CSN purple 10 ArduinoNano5V
NRF24L01+ Adapter SCK yellow 13 ArduinoNano5V
NRF24L01+ Adapter M0 (MOSI) gray 11 ArduinoNano5V
NRF24L01+ Adapter M1 (MISO) white 12 ArduinoNano5V
NRF24L01+ Adapter IRQ green - OPTIONAL - NOT USED! 2 ArduinoNano5V
WS2812B +5V yellow 5V Power Supply
WS2812B IN blue D4 ArduinoNano5V
WS2812B GND brown GND Power Supply

Programming

Code at: CO2Node.ino

Beware: Using the OLED display library, reading the CO2 meter, and MySensors is a bit much for the Arduino ATmega328p: there is barely enough RAM memory. The code had to be reduced to the bare essentials, to limit RAM and Flash-RAM use. Hence: no debug information from MySensors.

Compile as follows:
  • CD to the folder where the file platformio.ini is.
  • Run pio run
  • Run pio run -t upload -t monitor

First sign of life

__  __       ____
|  \/  |_   _/ ___|  ___ _ __  ___  ___  _ __ ___
| |\/| | | | \___ \ / _ \ `_ \/ __|/ _ \| `__/ __|
| |  | | |_| |___| |  __/ | | \__ \  _  | |  \__ \
|_|  |_|\__, |____/ \___|_| |_|___/\___/|_|  |___/
        |___/                      2.3.2

1.0
3209
3257
3574
4676
5397
4255
3572

Initially, the meter is not very stable. After an hour, the measurements vary only 1 or 2 ppm per measurement. For calibration, it is imperative that the sensor at least once a day or week can measure outside air. In my case, it is sufficient to have no people in the room during the night, while the ventilation system refreshes the air; this way the level of CO2 will be the same as outside in the morning.

Graph of CO2 ppm over 48h

This graph shows the CO2 ppm over the last 48 hours. During the day, there are people in the room, and the ppm value goes up. During the night the room is empty, the ventilation system refreshes the air and the ppm value goes down to 400.

The stability problem

Once in a few weeks, the node crashes: the screen is frozen and no MySensors messages are sent.

In such crashed state, pressing the Arduino Nano reset button resolves the problem. Hence, I presume that the problem is caused by the oscillator, which just stops and does not restart by itself.

In an attempt to figure out what is causing the problem, I added a OpenLog device to the Nano. But since then, it did not crash yet.

The OpenLog module - overview

The OpenLog module - overview

The OpenLog module - detail

The OpenLog module - detail

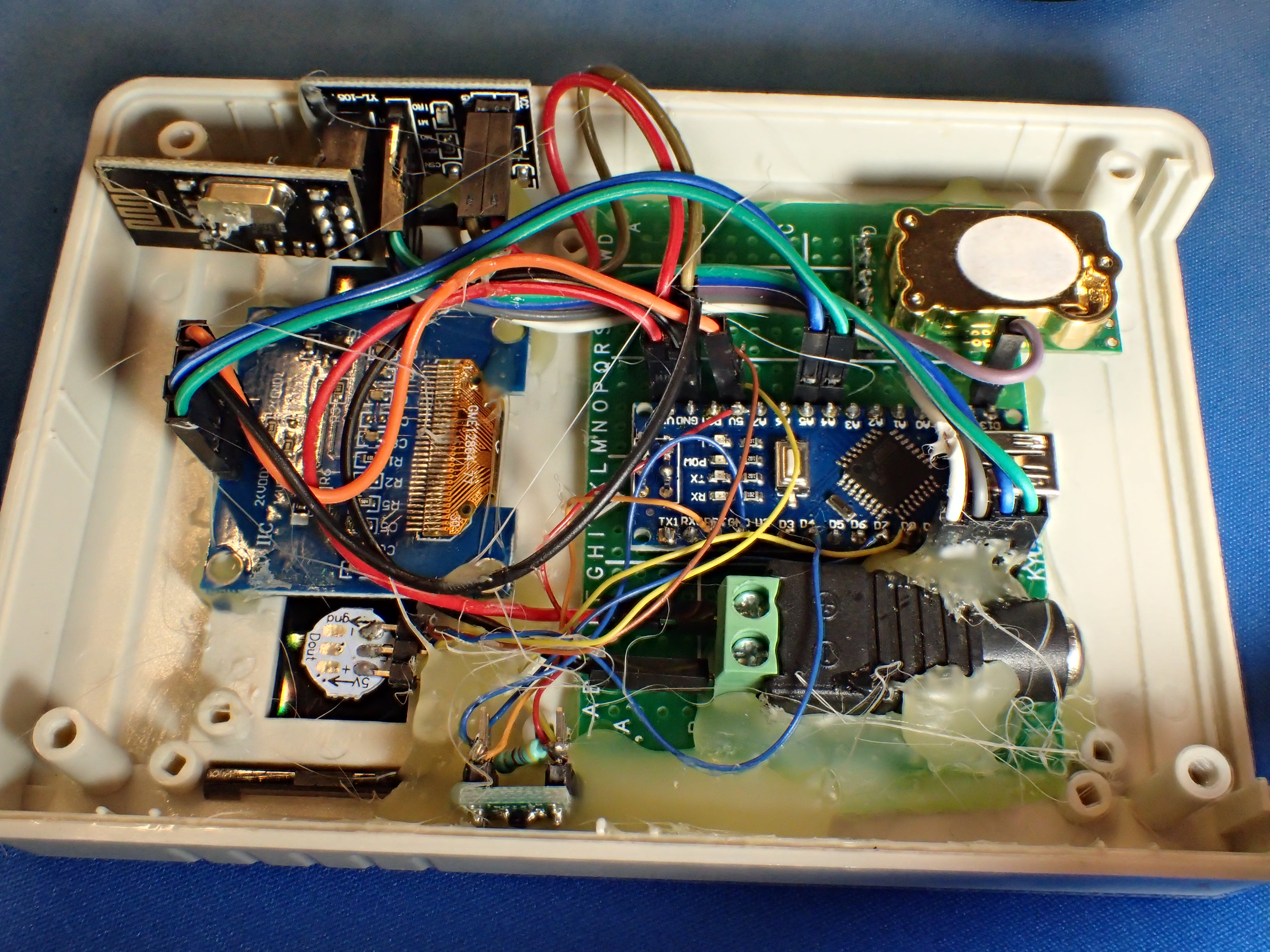

As a solution, I added a hardware STWD100 watchdog circuit. It never crashed since!

Adding a Watchdog STWD100

Wiring

Component Pin Wire color / component Pin Component
ArduinoNano5V VCC red 5: VCC STWD100
ArduinoNano5V GND black 2: GND STWD100
STWD100 1: /WDO (watchdog out) orange /RESET ArduinoNano5V
STWD100 3: /EN (Watchdog enable)   D7 ArduinoNano5V
STWD100 4: WDI (watchdog input) yellow D8 ArduinoNano5V
STWD100 3: /EN (watchdog enable) pullup resistor 4.7KOhm 5V Power Supply
